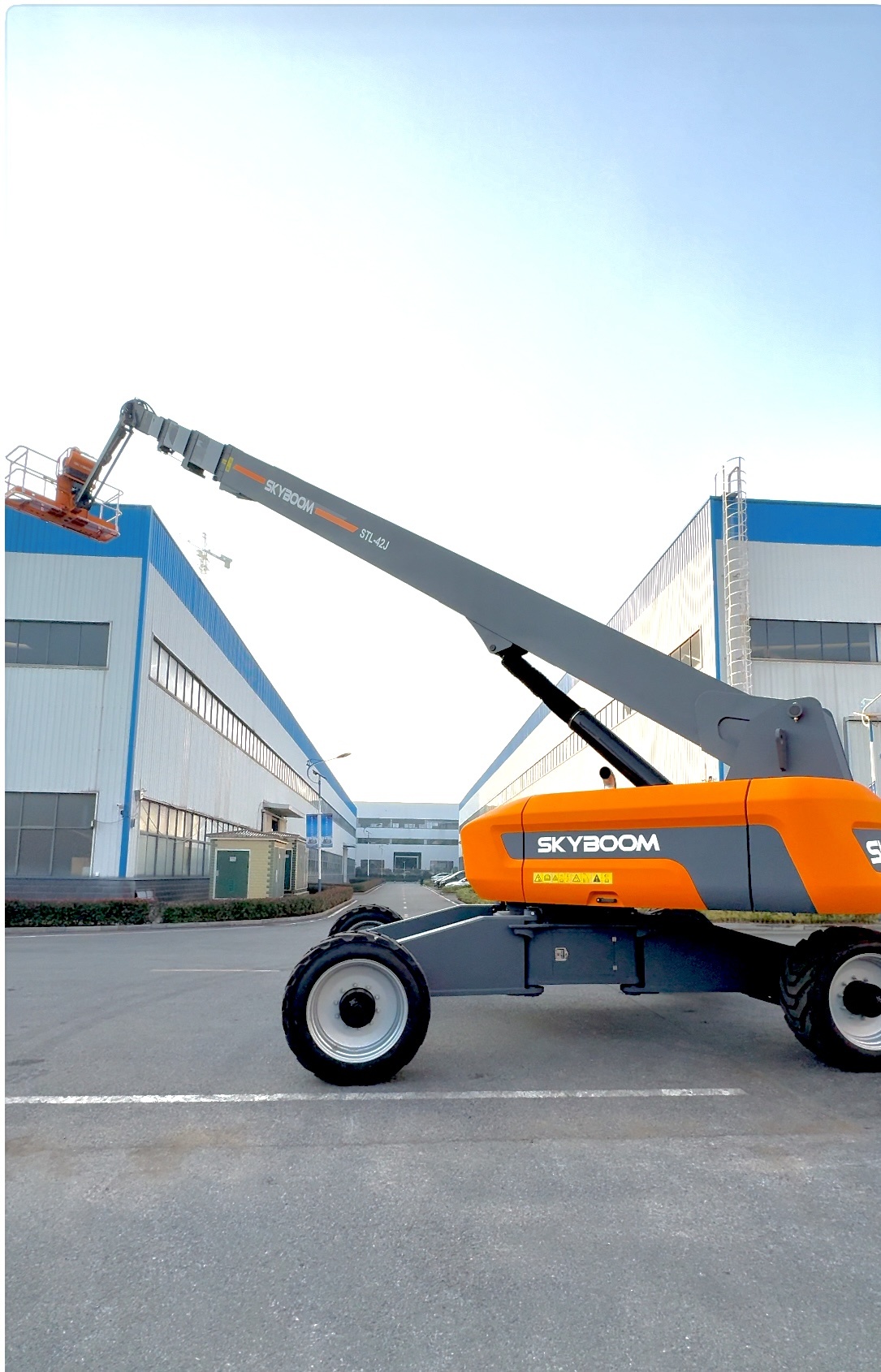

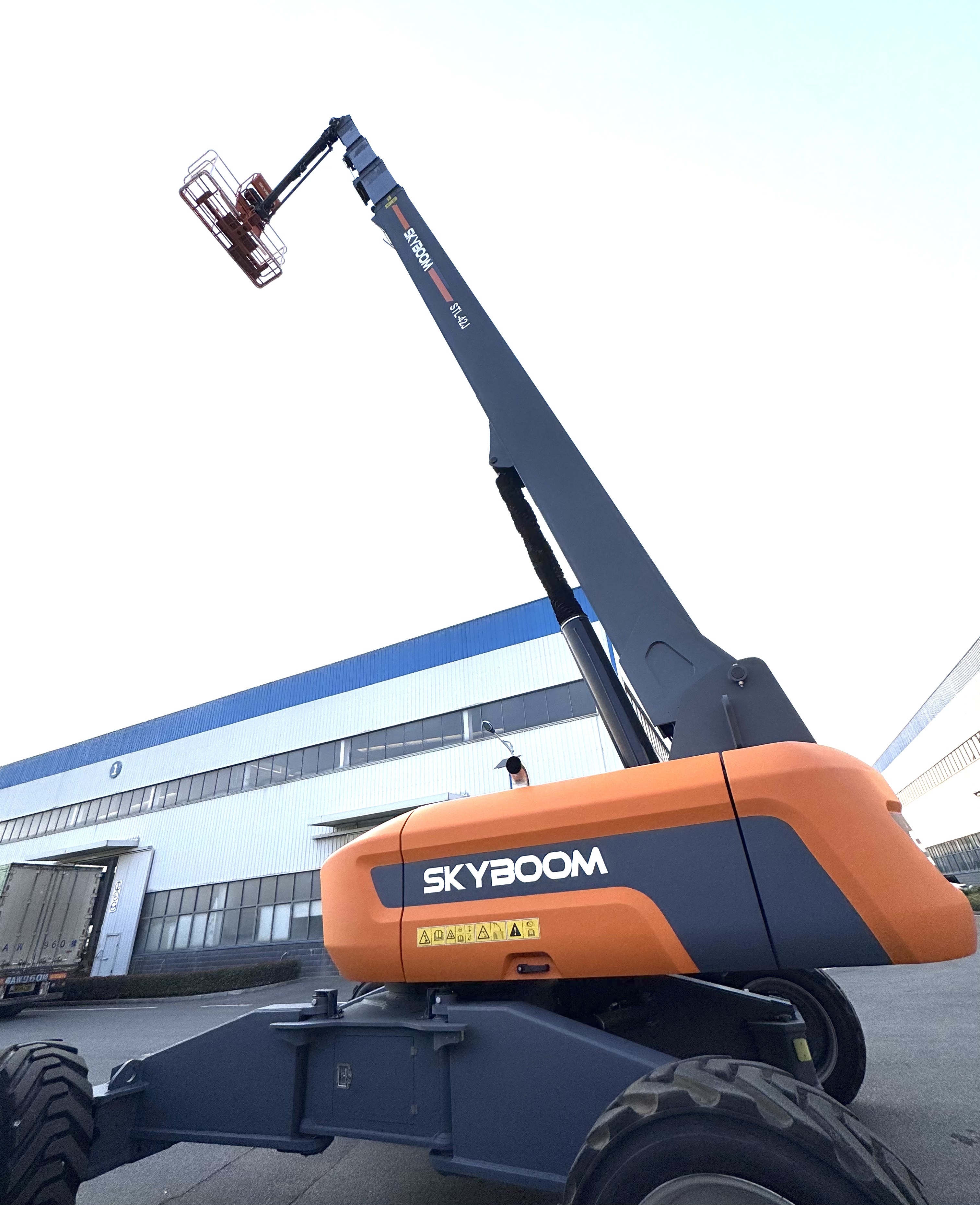

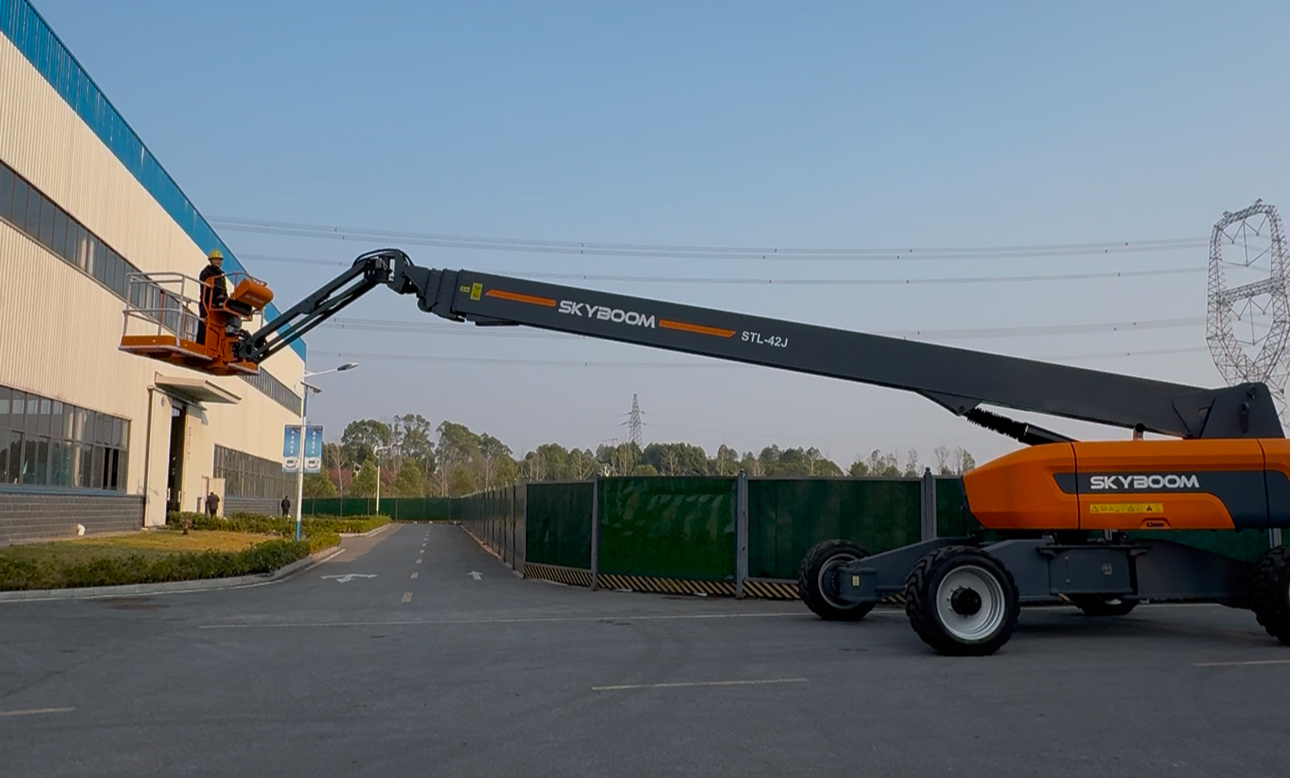

STL-42J
Global professional aerial work platform equipment manufacturer
Efficient operation, safe and worry-free
STL-42J
Main Specification
●Lift capacity: 250KG/480KG
●Width-stowed: 2.49m
●Working height: 43.6m
Product Highlights
●Simple operation, good stability and no impact.
●Telescopic boom, realizing larger span operation.
●Strong climbing ability.
●Lift capacity: 250KG/480KG
●Width-stowed: 2.49m
●Working height: 43.6m
Product Highlights
●Simple operation, good stability and no impact.
●Telescopic boom, realizing larger span operation.
●Strong climbing ability.
劲旅环境
| Dimension | Productivity | ||
| Working height maximum | 43.6m | Lift capacity | 250kg/480kg |
| Platform height maximum | 41.6m | Max platform occupancy | 2 |
| Horizontal height maximum | 23.8m/21.6m | Drive speed-stowed (max) | 4.4 km/h |
| Length -stowed | 14.96m | Drive speed-raised (max) | 1.1 km/h |
| Width-stowed | 2.49m | Gradeability-stowed | 40% |
| Height-stowed | 3.15m | Turning radius-inside(raised) | 2.94m |
| Platform size(L×W) | 2.44m*0.91m | Turning radius-inside(stowed ) | 8m |
| Wheel base | 4.17m | Turning radius-outside(raised) | 6.2m |
| Ground clearance(center) | 0.48m | Turning radius-outside(stowed ) | 10m |
| Turning tail-swing | 1.89m | ||
| Working slope maximum | 5° | ||
| Rotation | 360° | ||
| Tyre | 445/50D710 | ||
| Power | Sound level | Weight | |||
| Power source | Cummins | Sound pressure level(ground workstation) | ≤82dBA | Standard | 23800kg |
| Fuel Tank | 170L | ||||
| Drive & steering | 4WD*4WS | ||||
